ML CathCAD® seamlessly exports to Microsoft Excel your numerical results in the ML CathCAD® designated format. Each exported design is provided a unique project number. This allows you to spend more time developing and analyzing your microcatheter design and less time writing down your results.
The export format consists of the following items:
- Nominal dimensions (ID, OD, WALL)
- Layered Construction
- Resulting Catheter Rigidities (EI, EA, GJ)
- Catheter Ovalization at a given bend radius
- Failure Modes: Kink Radius, Tensile, Torque, and External Pressure (Crush) Rating

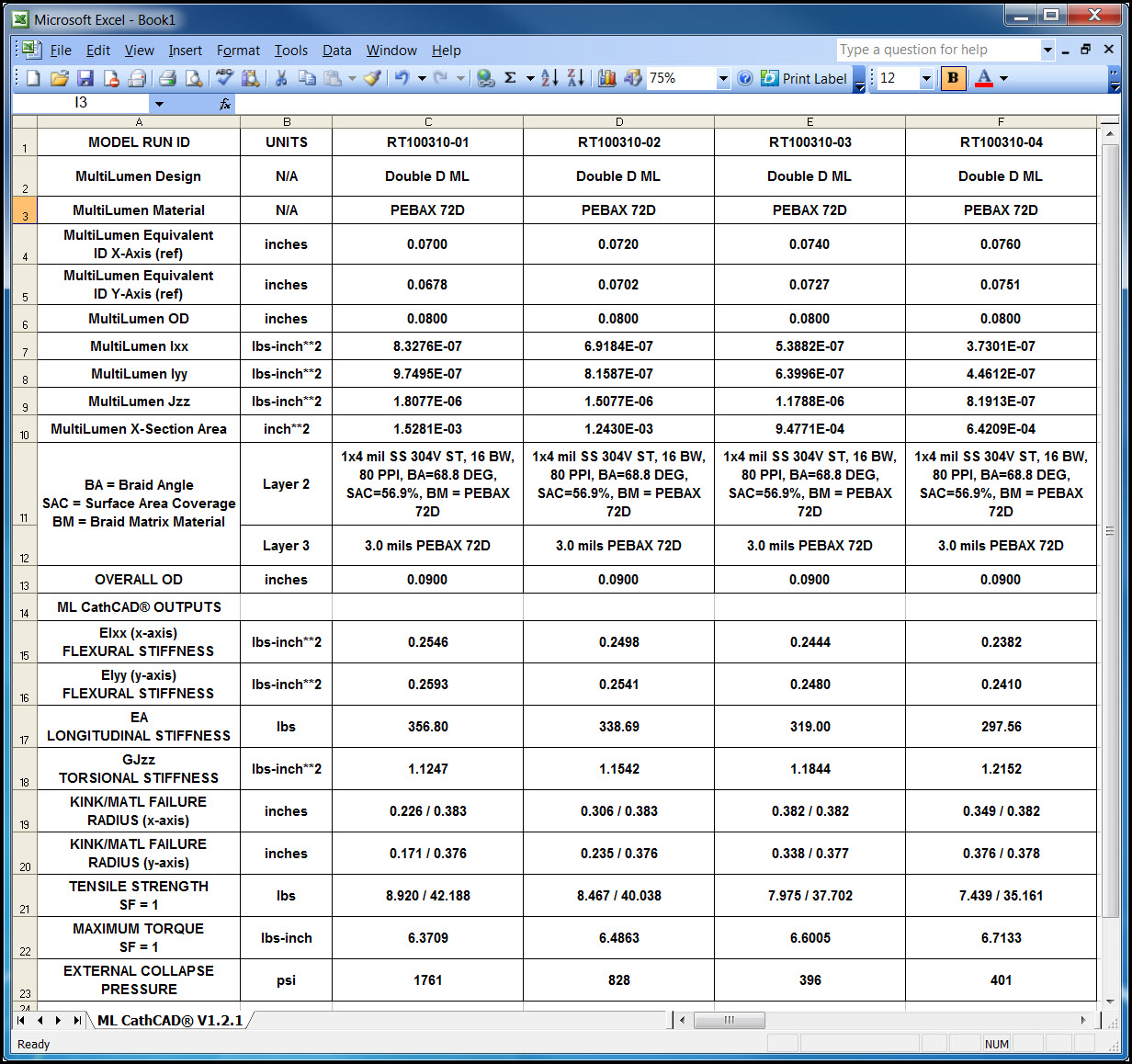

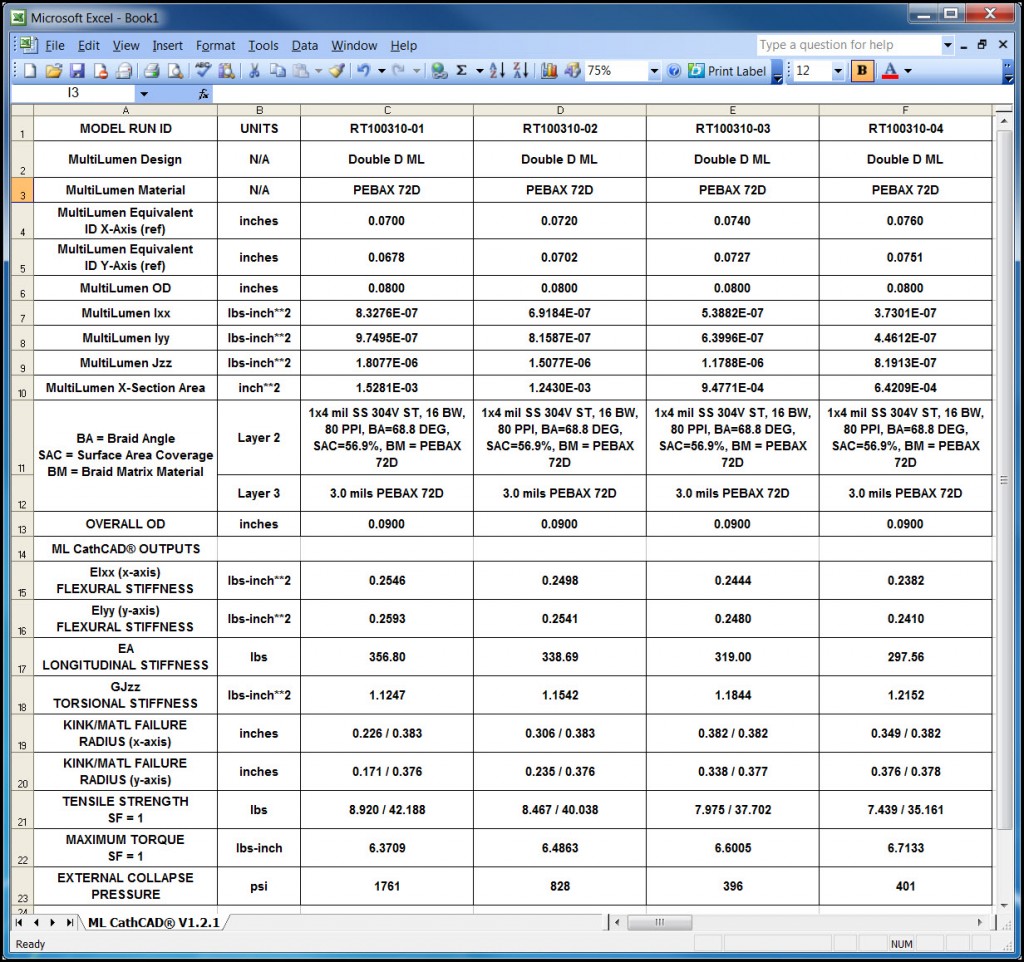

An illustration of this output format is provided below. We have the capability for customizing the standard output specifically for your purposes.
